MODEL Q1 • Compact Padlock
Tuya Smart Bluetooth Fingerprint Padlock

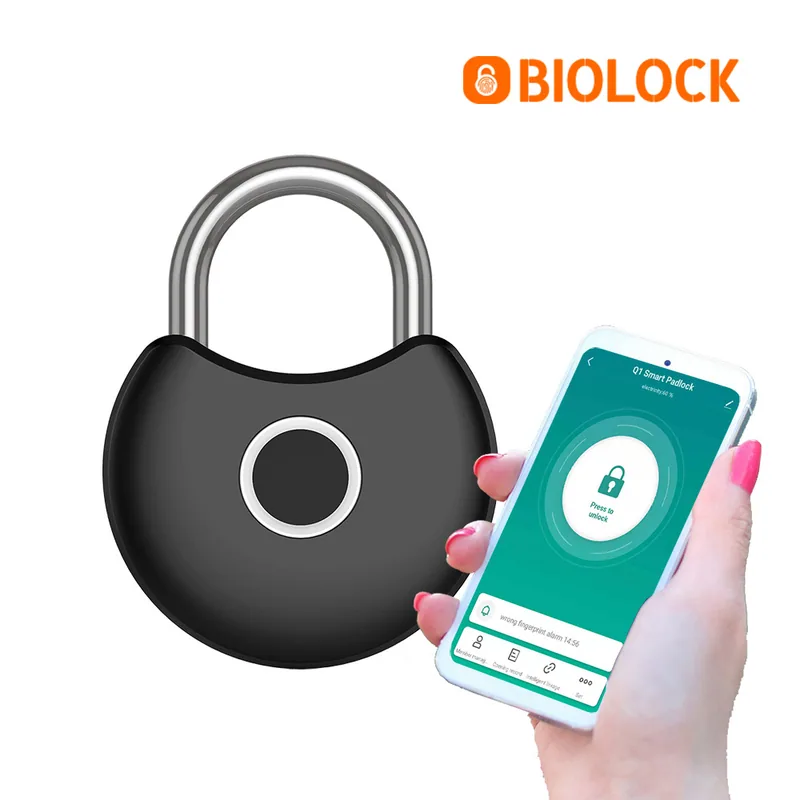

Tuya Smart / Smart Life app readyA compact Bluetooth padlock with fingerprint recognition and Tuya Smart Life app management for lockers, luggage and storage.
✓ Tuya Smart / Smart Life app access and management✓ One-touch access for up to 20 authorized fingerprints✓ Access logs, member authorization and low-power alerts✓ USB Type-C charging and up to six months standby
PRODUCT DATA
Functions & applications
A compact Bluetooth padlock with fingerprint recognition and Tuya Smart Life app management for lockers, luggage and storage.
Product functions
- Tuya Smart / Smart Life app access and management
- One-touch access for up to 20 authorized fingerprints
- Access logs, member authorization and low-power alerts
- USB Type-C charging and up to six months standby
- Water-resistant zinc-alloy body and stainless-steel shackle
- OEM logo, color and packaging programs

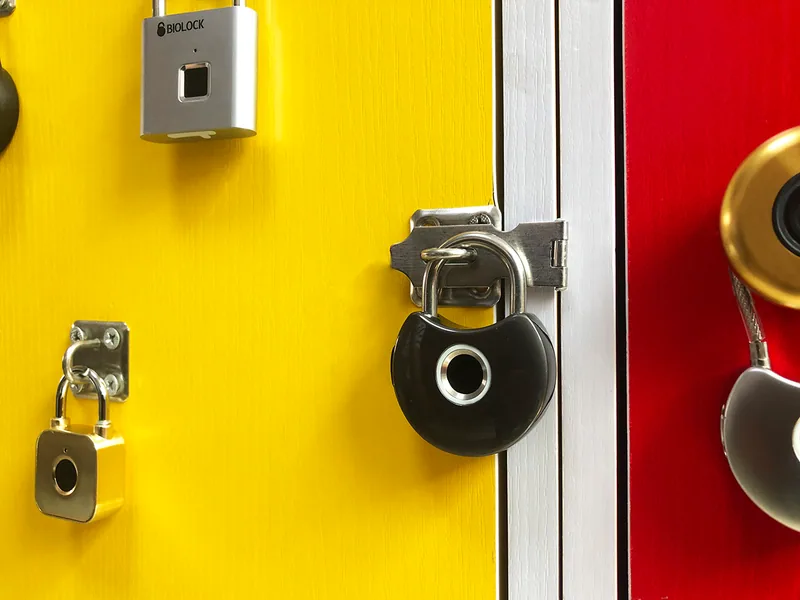

Recommended applications
- Gate, cabinet and drawer security
- Warehouse, garage, fence, office and toolbox
- Gym, school and employee lockers
- Travel bags, backpacks and suitcases
Functions and applications are based on the current BioLock specification files. Confirm the final configuration for customized orders.
Technical specifications
Packaging dimensions and weights may vary when custom packaging or accessories are selected.
- Fingerprint
- 120 × 120 sensor
- Fingerprint capacity
- 20 sets
- Unlock time
- < 500 ms
- FAR / FRR
- < 0.001% / < 1%
- Working temperature
- -20°C to +50°C
- Battery
- 3.7V / 160mAh rechargeable
- Charging
- USB Type-C, DC 5V / 500mA

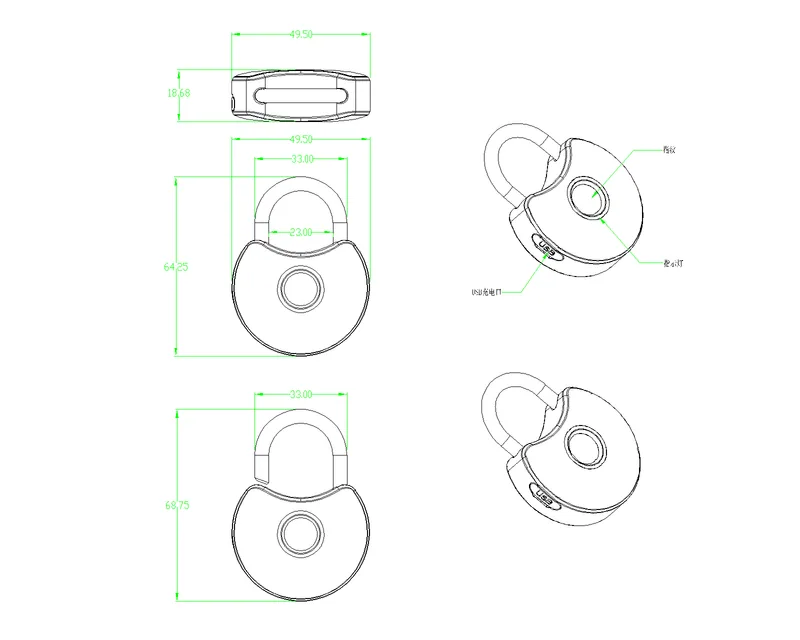

- Lock dimensions
- 49 × 65 × 19 mm
- Net weight
- 0.12 kg
- Retail package
- 160 × 90 × 35 mm; 0.16 kg
- Master carton
- 47 × 33 × 16 cm; 50 pcs; 8.5 kg
18-month warranty
Free repair or replacement for verified manufacturing defects within 18 months from the factory shipment date. Contact us with the model, batch and issue details.
